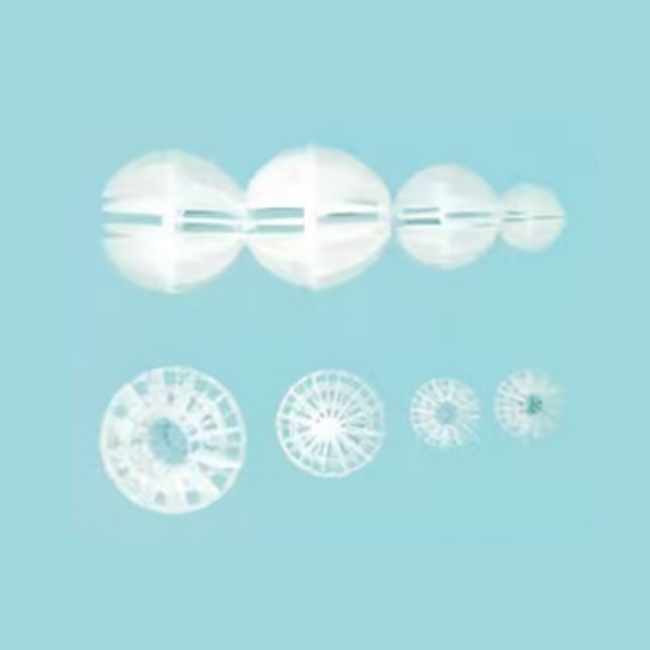

Multi sided hollow sphere packing

The multi-faced hollow sphere packing features numerous blades, offering low resistance, hightemperature tolerance, corrosion resistance, and stable performance. It is widely used in intermediate water tanks, carbon dioxide deoxygenation towers, contact reaction towers, and similar equipment. The central section of each multi-faced hollow sphere is reinforced with a ring along its entire circumference, containing twelve spherical segments at both the top and bottom. These segments interlock with each other, arranged in a radial pattern around the central axis.

Inquire

Product Description
Specification

Product Description

Product Introduction

The product has a large surface area; high mass transfer efficiency, large air surface, and light weight, high strength, easy to install, welcome the departments concerned to promote the use.

Specification

Specifications mm	Specific surface area m²/m³	Porosity %	Number of accumulations n/m³	Weight of accumulation kg/m³
φ76	110	92	7800	42
φ50	236	90	11500	46.3
φ38	300	85	22800	63.5
①25	460	80	85000	86.5
